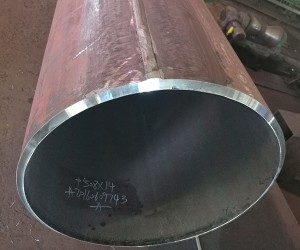

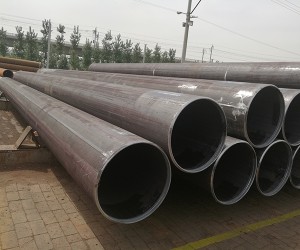

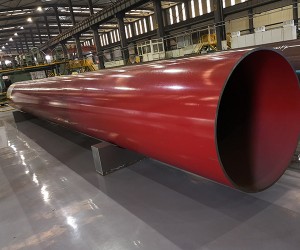

LSAW Steel Pipe For Chinese Factories

Short Description:

Outside Diameter:Φ406mm-Φ1626mm (16″-64″)

Wall thickness: 6.4mm-54mm (1/4″-2⅛”)

Length:3.0m-12.3m

End:square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled

Surface:Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy,? Fusion Bond Epoxy, 3-layers PE)

Send email to us

Product Detail

Product Tags

LSAW Structural Pipe

Used as low pressure liquid delivery pipes,variety of structural parts by the force and pressure as well as other purposes.

Standard

API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711 ASTM A139, ASTM A252, JIS G3444 etc.

Grades

API 5L: GR B, X42, X46, X56, X60, X65, X70

ASTM A53: GR A, GR B, GR C

EN:S275, S275JR, S355JRH, S355J2H

GB:Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555

Packing

Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

Product parameters

Nominal Diameter A	Nominal Diameter B	Outside Diameter(mm)	SCH-5S Nominal Wall thickness(mm)	SCH-10S Nominal Wall thickness(mm)	SCH-20S Nominal Wall thickness(mm)	SCH-40 Nominal Wall thickness(mm)
150	6	165.2	2.8	3.4	5.0	7.1
200	8	216.3	2.8	4.0	6.5	8.2
250	10	267.4	3.4	4.0	6.5	9.3
300	12	318.5	4.0	4.5	6.5	10.3
350	14	355.6	4.0	5.0	8.0	11.1
400	16	406.4	4.5	5.0	8.0	12.7
450	18	457.2	4.5	5.0	8.0	14.3
500	20	508.0	5.0	5.5	9.5	15.1
550	22	558.8	5.0	5.5	9.5	15.9
600	24	609.6	5.5	6.5	9.5	17.5
650	26	660.4	5.5	8.0	12.7	-
700	28	711.2	5.5	8.0	12.7	-
750	30	762.0	6.5	8.0	12.7	-
800	32	812.8	-	8.0	12.7	-
850	34	863.6	-	8.0	12.7	-
900	36	914.4	-	8.0	12.7	-
1000	40	1016.0	-	9.5	14.3	-
1050 \| 1650	42 \| 66	1066.8 \| 1676.4	When dimensions other than those given in the alove-mentioned table are required，the dimensions shell be determined as agreed upon between the purchaser and the suppliers。
